FID - Apodization

Apodization, or time-domain filtering, is a processing step applied prior to the Fourier transformation to enhance the Signal-to-Noise Ratio (SNR) and/or the spectral resolution of MR spectra.

During apodization, the time-domain Free Induction Decay (FID) signal, f(t)f(t), is multiplied by a filter function, ffilter(t)f_{filter}(t).

import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

# Ensure the accessor is registered
import xmris

1. Generating Synthetic Data

Let’s generate a synthetic FID consisting of a single decaying resonance with added Gaussian noise. We pack this into an xarray.DataArray to preserve physical coordinates and metadata.

Source
# Acquisition parameters
dwell_time = 0.001  # 1 ms
n_points = 1024
t = np.arange(n_points) * dwell_time

# Synthetic FID: 50 Hz resonance, T2* = 0.05s, plus complex noise
rng = np.random.default_rng(42)
clean_fid = np.exp(-t / 0.05) * np.exp(1j * 2 * np.pi * 50 * t)
noise = rng.normal(scale=0.1, size=n_points) + 1j * rng.normal(scale=0.1, size=n_points)
raw_fid = clean_fid + noise

# Xarray construction
da_fid = xr.DataArray(
    raw_fid, dims=["time"], coords={"time": t}, attrs={"sequence": "PRESS", "B0": 3.0}
)

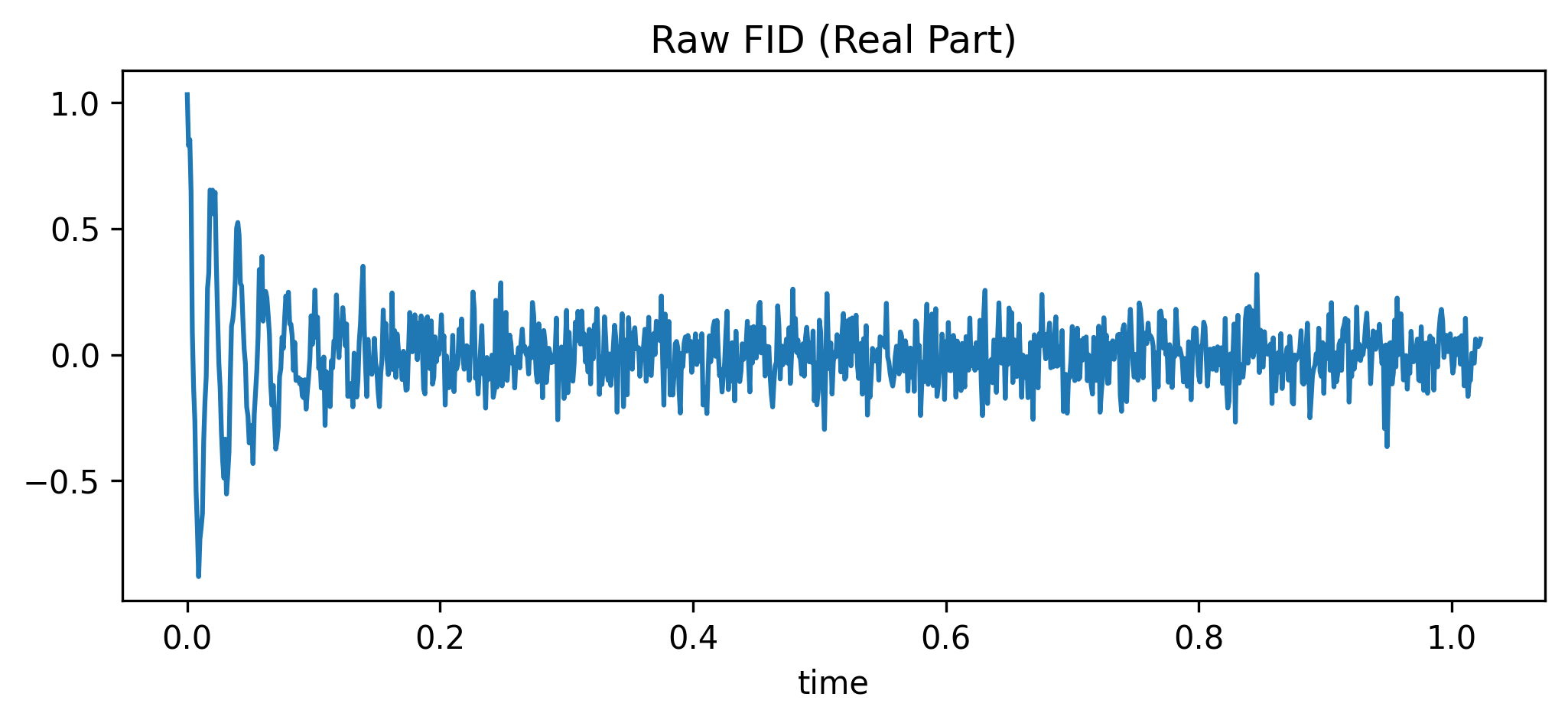

da_fid.real.plot(figsize=(8, 3))
plt.title("Raw FID (Real Part)")
plt.show()
<Figure size 1200x450 with 1 Axes>

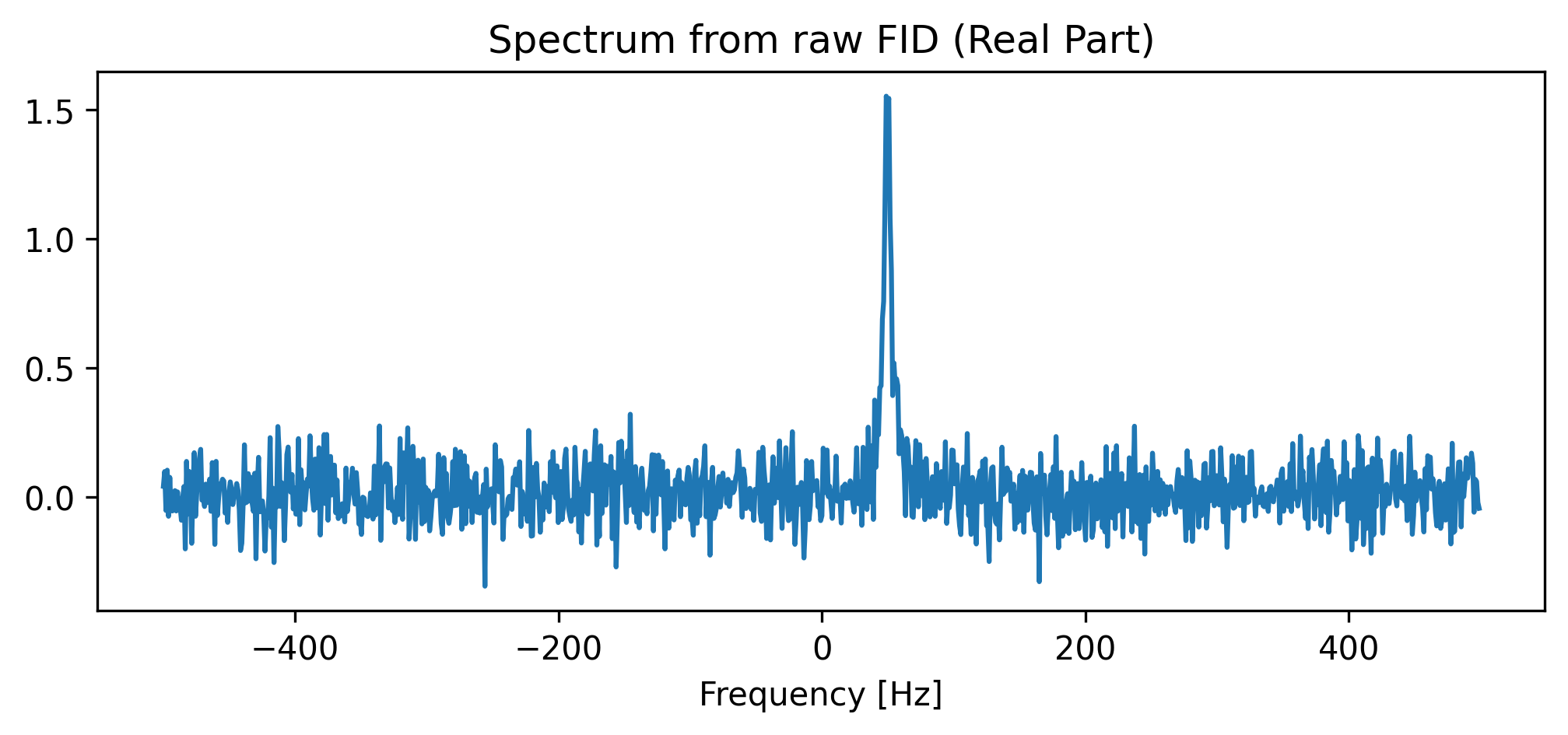

By default, taking the Fourier transform of this raw signal yields a noisy spectrum.

da_fid.xmr.to_spectrum().real.plot(figsize=(8, 3))
plt.title("Spectrum from raw FID (Real Part)")
plt.show()
<Figure size 1200x450 with 1 Axes>

2. Exponential Apodization (Line Broadening)

A common filter function is the decreasing mono-exponential weighting: ffilter(t)=e−t/TLf_{filter}(t) = e^{-t/T_L}.

This filter improves the SNR of the spectrum because data points at the end of the FID, which primarily contain noise, are heavily attenuated. However, this causes the FID to decay faster than its natural T2∗T_2^*, leading to broader resonance lines. Because of this, time-domain apodization with a decreasing exponential is commonly referred to as “line broadening”.

In xmris, we parameterize this using the line broadening factor in Hz (lb), where TL=1π⋅lbT_L = \frac{1}{\pi \cdot \text{lb}}.

Why is lb in Hz?

In NMR and MRS, the natural decay of the Free Induction Decay (FID) is governed by the apparent transverse relaxation time, T2∗T_2^*. The Fourier Transform of an exponentially decaying signal e−t/T2∗e^{-t/T_2^*} yields a Lorentzian peak shape in the frequency domain.

The Full Width at Half Maximum (FWHM) of this Lorentzian peak is directly tied to the decay rate:

FWHM=1πT2∗\text{FWHM} = \frac{1}{\pi T_2^*}
(1)

Because T2∗T_2^* is measured in seconds, this FWHM is inherently measured in Hertz (Hz).

When we multiply the FID by an exponential apodization filter e−t/TLe^{-t/T_L}, we are artificially accelerating the signal decay. The effective decay time becomes:

1T2,eff∗=1T2∗+1TL\frac{1}{T_{2,eff}^*} = \frac{1}{T_2^*} + \frac{1}{T_L}
(2)

Multiplication in the time domain equates to convolution in the frequency domain. The convolution of two Lorentzians yields a new Lorentzian whose width is simply the sum of the two original widths:

FWHMeff=FWHMnatural+lb\text{FWHM}_{eff} = \text{FWHM}_{natural} + \text{lb}
(3)

Therefore, the lb parameter is conveniently defined in Hz because it represents the exact, quantifiable amount of extra width you are adding to the resonance peaks in your final spectrum!

# Apply 5 Hz of line broadening
lb = 5.0
da_exp = da_fid.xmr.apodize_exp(dim="time", lb=lb)

# Calculate the filter curve for visualization
t_coords = da_fid.coords["time"].values
filter_exp = np.exp(-np.pi * lb * t_coords)

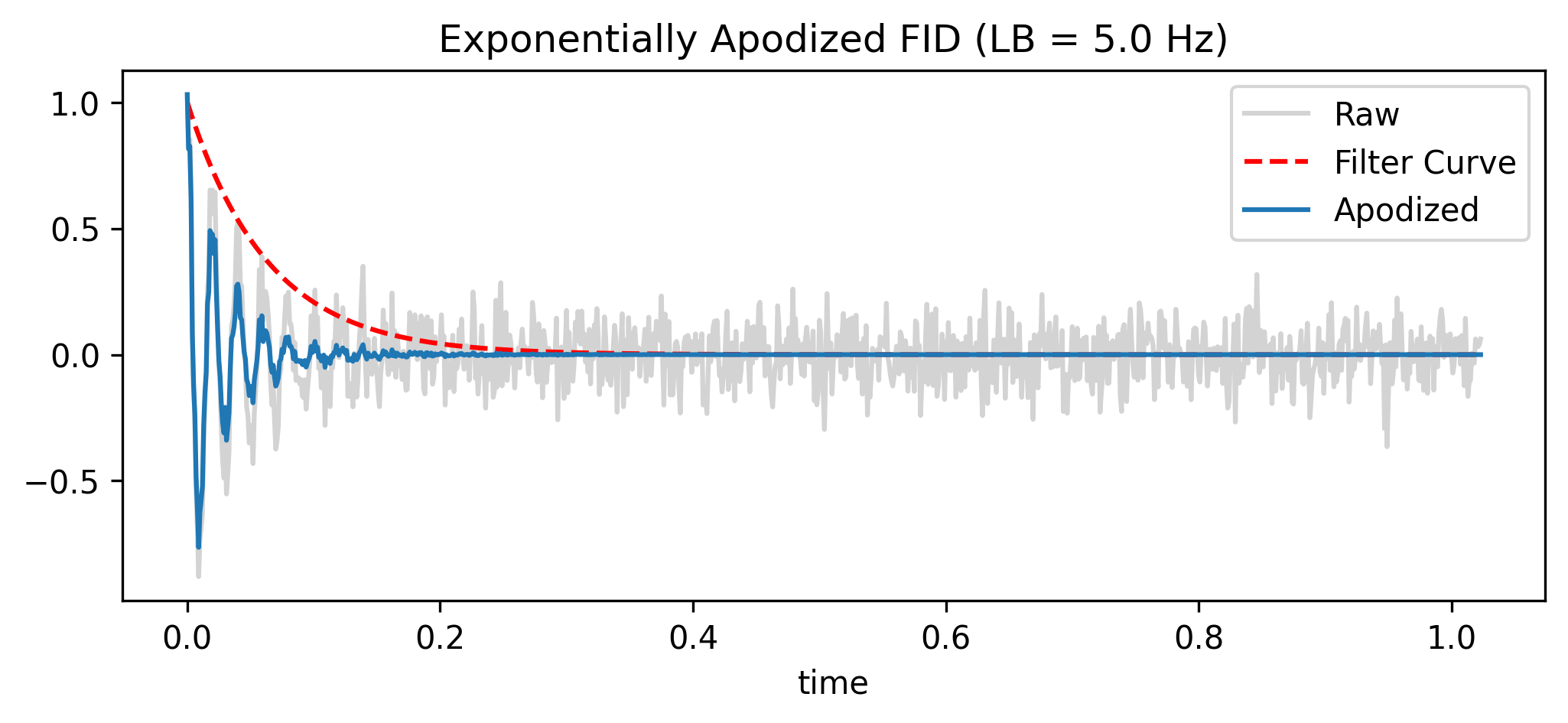

fig, ax = plt.subplots(figsize=(8, 3))

# plot the original spectrum as gray background
da_fid.real.plot(ax=ax, color="lightgray", label="Raw")
# overlay the filter curve
ax.plot(t_coords, filter_exp, color="red", linestyle="--", label="Filter Curve")
# plot the apodized FID
da_exp.real.plot(ax=ax, label="Apodized")


plt.title(f"Exponentially Apodized FID (LB = {lb} Hz)")
plt.legend()
plt.show()
<Figure size 1200x450 with 1 Axes>
Under the Hood: No Magic Strings

As a user, you can pass simple strings like "time" and "frequency" to xmris functions. However, internally, the package never uses raw strings. It maps your input to a strict global vocabulary (xmris.core.config.DIMS and COORDS).

This architecture allows xmris to intercept your request and automatically inject physical metadata (like setting the new coordinate units to Hz or s) without you ever having to ask for it!

For more info see xmris Architecture: Why We Built It This Way

Here is the resulting, smoothed spectrum:

fig, ax = plt.subplots(figsize=(8, 3))

da_fid.xmr.to_spectrum().real.plot(ax=ax, color="lightgray", label="Raw")
da_exp.xmr.to_spectrum().real.plot(ax=ax, label="Apodized")
plt.title("Apodized vs. Raw Spectrum (Real Part)")
plt.legend()
plt.show()
<Figure size 1200x450 with 1 Axes>

3. Lorentzian-to-Gaussian Transformation

The Lorentzian-to-Gaussian filter converts a standard Lorentzian line shape into a Gaussian line shape, which decays to the baseline in a narrower frequency range. A standard Lorentzian shape produces longer “tails”, which is a disadvantage when trying to accurately integrate overlapping resonance lines.

The time-domain FID is multiplied by the function ffilter(t)=e+t/TLe−t2/TG2f_{filter}(t) = e^{+t/T_L}e^{-t^2/T_G^2}.

The principle is to cancel the Lorentzian part of the FID (using a positive exponential parameterized by TLT_L) while concurrently increasing the Gaussian character of the FID (using the squared exponential parameterized by TGT_G). In xmris, we parameterize these using Lorentzian line broadening to cancel (lb) and Gaussian line broadening to apply (gb).

# Cancel 3 Hz of Lorentzian broadening and apply 4 Hz of Gaussian broadening
lb = 3.0
gb = 4.0
da_lg = da_fid.xmr.apodize_lg(dim="time", lb=lb, gb=gb)

# Calculate the filter curve for visualization
t_coords = da_fid.coords["time"].values
weight_lorentzian = np.exp(np.pi * lb * t_coords)
t_g = (2 * np.sqrt(np.log(2))) / (np.pi * gb)
weight_gaussian = np.exp(-(t_coords**2) / (t_g**2))
filter_lg = weight_lorentzian * weight_gaussian

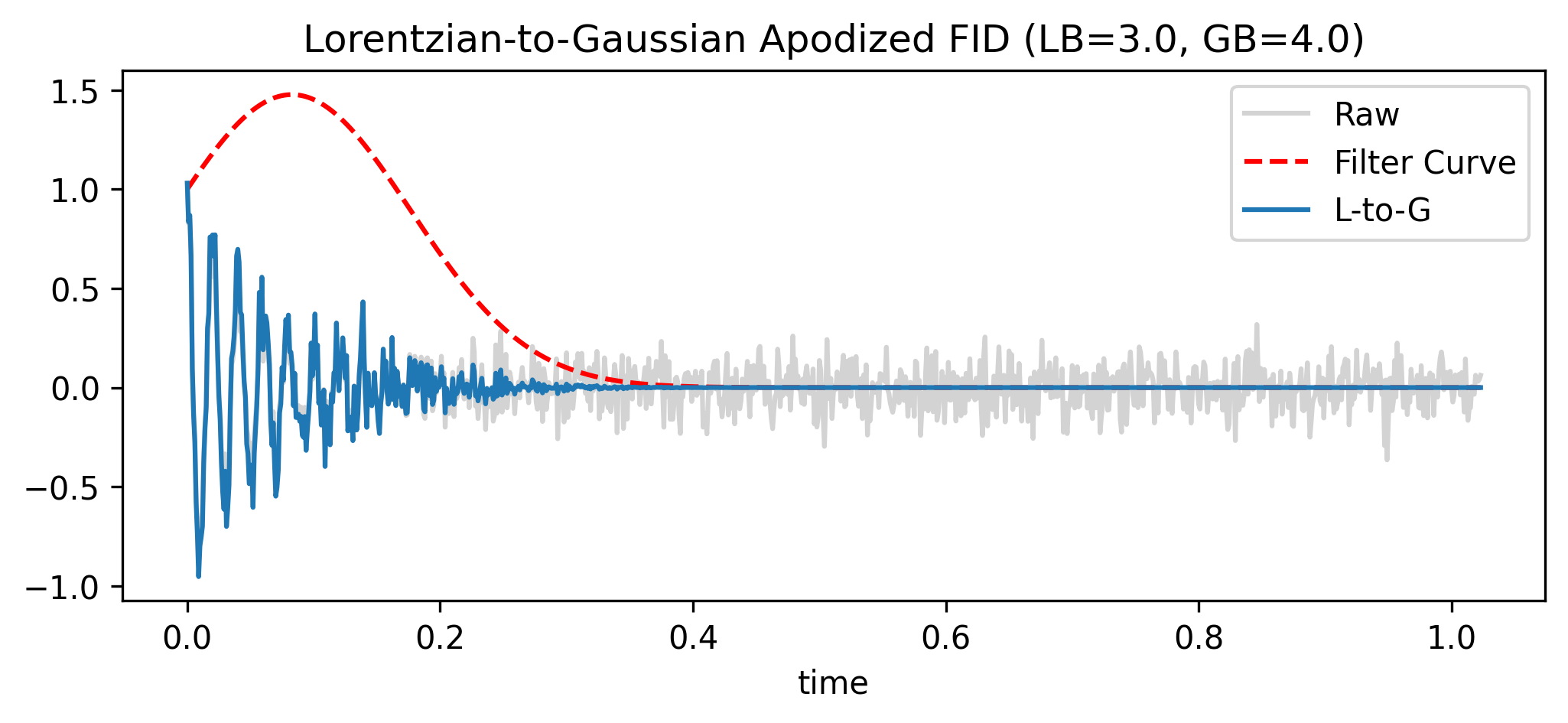

fig, ax = plt.subplots(figsize=(8, 3))
# plot the original spectrum as gray background
da_fid.real.plot(ax=ax, color="lightgray", label="Raw")
# overlay the filter curve
ax.plot(t_coords, filter_lg, color="red", linestyle="--", label="Filter Curve")
# plot the apodized FID
da_lg.real.plot(ax=ax, label="L-to-G")

plt.title(f"Lorentzian-to-Gaussian Apodized FID (LB={lb}, GB={gb})")
plt.legend()
plt.show()
<Figure size 1200x450 with 1 Axes>

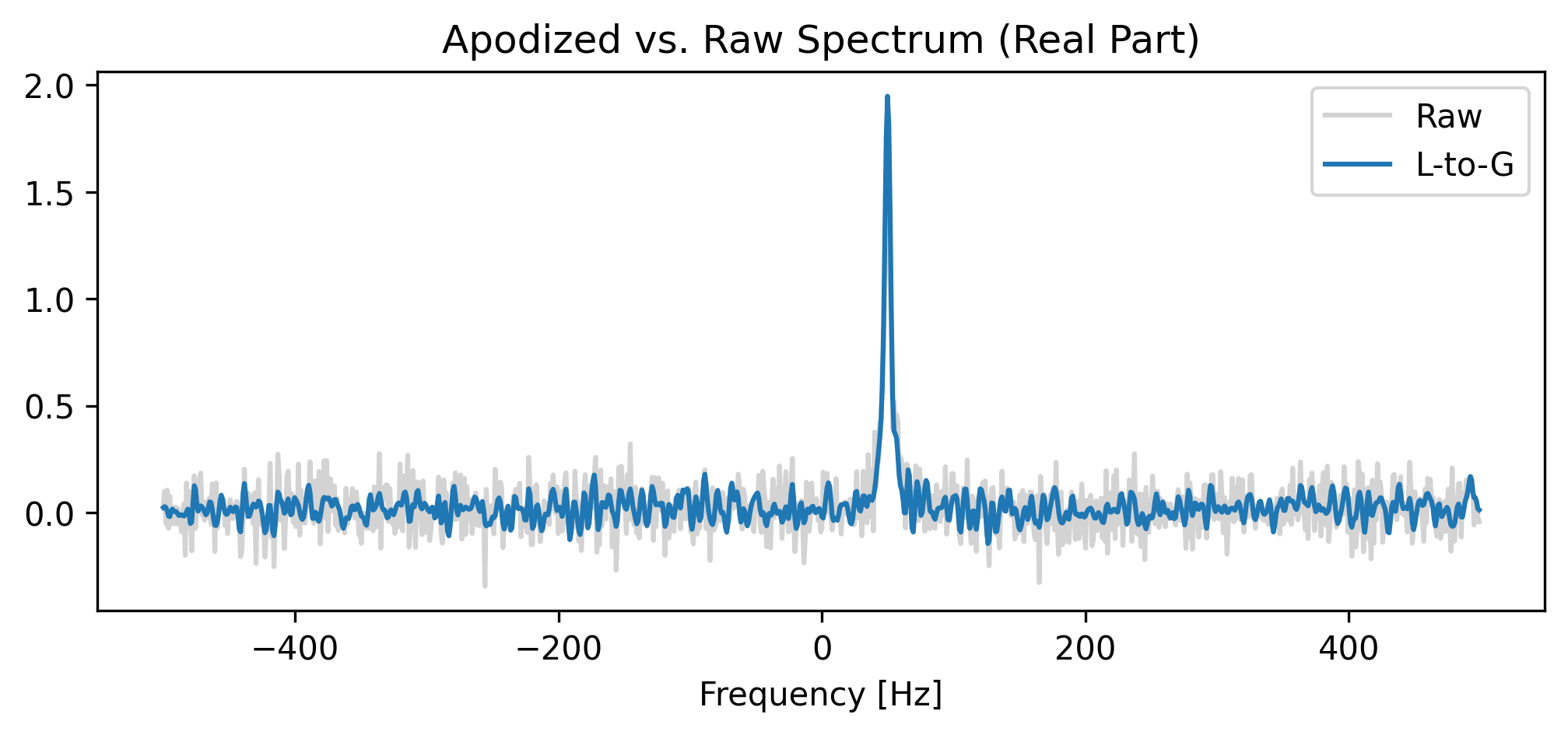

Resulting in a spectrum with fundamentally different peak shapes:

fig, ax = plt.subplots(figsize=(8, 3))

da_fid.xmr.to_spectrum().real.plot(ax=ax, color="lightgray", label="Raw")
da_lg.xmr.to_spectrum().real.plot(ax=ax, label="L-to-G")
plt.title("Apodized vs. Raw Spectrum (Real Part)")
plt.legend()
plt.show()
<Figure size 1200x450 with 1 Axes>
